| The specification |
| Model No | Product model | LCD-BAR240AO |

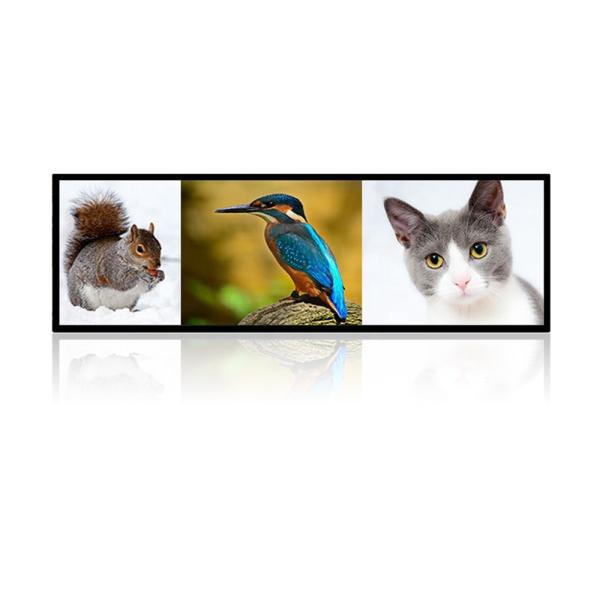

LCD Screen Panel
| Screen size | 24" LCD Panel |
| Active display area | 597.888(H) X 112.104(V)mm |
| Resolution | 1920(V) X 360(H) |
| Brightness | 300cd/m2 |
| Contrast ratio | 1200:1 |
| Display color | 16.7M |
| Backlight type | WLED |
| Viewing angles | 178°(H) X 178°(V) |
| Response time | 30ms |
| Lifespan | 50000 hours |
| Main board | CPU | Rockchip PX30 Quad core ARM Cotex-A35 |
| RAM | 1G DDR3(1 G/2G for optional ) |
| ROM | 8G EMMC(8G/16G/32G/64GEMMC for optional) |
| Memory extension | TF Card extension with the highest support for 64GB |
| System | Android 8.1 |
| Internet | Support 2.4G WIFI connection |
| RTC real time clock | Support timing on / off function |
| Interfaces | 1xTF card slot |
Function optional
| 1*micro USB(OTG) |
| 4G module |
| 8Ω1W*1 speaker |
| Machine specification | Operating voltage | 100-240V(50/60Hz) |
| Power consumption | ≤25W |
| Product size | 617.5(H)X137.0(V)X27.2(D)mm |
| Installation | Embedded, wall-mounted |
| Apperance material | Metal shell |
| Net weight | ≤2.6KG |
| Surface treatment | Black metal paint |
| Environmental | Storage Environment | Temperature:-20℃~60℃ |
| Humidity:5%~95% |
| Atmospheric Pressure:86kPa~104kPa |
| Working Environment | Temperature:0℃~50℃ |
| Humidity:10%~85% |
| Atmospheric Pressure:86KPa~104KPa |
| Packing list | Bar lcd display | 1pcs |
| OTG Cable | 1Pcs(OTG cable,micro USB to USB 2.0) |
| Adapter | 1Pcs (12V-3A) |
| Support special requirements customization |
1. Slim and light design.
2. Firm and durable case, made of metal plate.
3. VESA standard wall mount, able to hold kiosk tightly.
4. Able to split screen, able to be double sided, able to make
vertical screen.
5. LED backlight, high brightness, clear image.
6. Suitable for super market, subway station, bus station, etc.
