8 Inch LCD Display 800x1280 Automated Temperature Kiosk

Ask Lasest Price
Brand Name :	LB
Model Number :	LB-005
Certification :	CE
Price :	$490pcs-$580/pcs
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	10000000pcs/month
Delivery Time :	3-5days

Add to Cart

Product Details
Company Profile

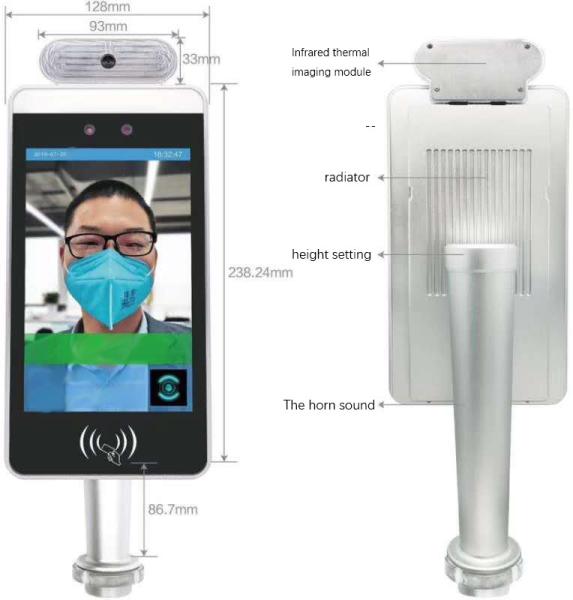

8 Inch LCD Display 800x1280 Automated Temperature Kiosk

8 inch lcd display auto temperature measurement kiosk with face recognition temperature measuring

Product Description

Camera	Resolution	2 million pixels
	Type	Binocular wide dynamic camera
	Aperture	F2.4
	Focusing distance	50-150cm
	White balance	auto
	Photo flood light	LED and IR dual photo flood light
Screen	Size	8.0 inch IPS LCD screen
	Resolution	800×1280
	Touch	Not supported (optional)
Processor	CPU	RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core)
	Storage	EMMC 8G
	Network module	Ethernet and wireless (WIFI)
	Audio	2.5W / 4R speakers
Interface	USB	1 USB OTG, 1 USB HOST standard A port
	Serial communication	1 RS232 serial port
	Relay output	1 door open signal output
	Wiegand	One Wiegand 26/34 output, one Wiegand 26/34 input
	Upgrade button	Support Uboot upgrade button
	Wired network	1 RJ45 Ethernet socket
Function	Credit card reader	None (optional IC card reader, ID card, ID card)
	Face Detection	Supports detection and tracking of multiple people at the same time
	Face library	Up to 30,000
	1: N face recognition	Support
	1: 1 face comparison	Support
	Stranger detection	Support
	Identify distance configuration	Support
	UI interface configuration	Support
	Upgrade remotely	Support
	Interface	Interfaces include device management, personnel / photo management, record query, etc.
	Deployment method	Support public cloud deployment, privatized deployment,LAN use, stand-alone use
Infrared thermal imaging module General parameters Packing list	Temperature detection	Support
	Temperature detection distance	1 meter (optimal distance 0.5 meter)
	Temperature measurement accuracy	≤ ±0.2℃
	Temperature measurement range	10℃~42℃
	Thermal field of view	32 X 32℃
	Visitors' temperature is normal and released directly	Support
	Abnormal temperature alarm	Support (temperature alarm value can be set)
General parameters	Power	DC12V(±10%)
	Operating temperature	0℃~60℃
	Storage temperature	-20℃~60℃
	Power consumption	13.5W(Max)
	Installation method	Screwed by wall mount bracket
	Size	Standard:274.2412821.48(mm)
	Size	IC card / ID card:296.18132.8825(mm)
Packing List	Machine * 1, power adapter * 1, manual * 1, certificate of conformity * 1

Care and Maintenance:

1. During the installation and use of the product, all electrical safety regulations must be strictly observed.

2. Please use the power adapter provided by the regular manufacturer.For specific requirements of the power adapter, see the product parameter table.

3. When installing on the gate, please make sure that the product is installed firmly.

4. If the product does not work properly, please contact the after-sales service personnel. Do not disassemble or modify the product in any way. (The company does not assume any responsibility for problems caused by unauthorized modification or repair.

5. Do not immerse the product in water. When the product is installed outdoors, try to use it with the rain cover provided by our company.

6. Please understand that you are responsible for properly configuring all passwords and other related product security settings, and keeping your user name and password properly.

7. If the equipment does not work properly, please do not disassemble it for repair, otherwise it will affect the equipment warranty.

8. Avoid extreme or extreme environments such as extreme high temperature (or low temperature), high humidity, vibration, radiation, and chemical corrosion during installation and use.
