Industry 120 Degrees 650nm 100mw Red Laser Diode Module

Product Categories

Shenzhen Libao Xingye Electronics Co., Ltd.

Contact Now

Industry 120 Degrees 650nm 100mw Red Laser Diode Module

Ask Lasest Price
Brand Name :	LB
Model Number :	LB-002
Certification :	CE FDA TUV ROHS
Price :	$0.1pcs-$2 pcs
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	10000000pcs/month
Delivery Time :	3-5days

Add to Cart

Product Details
Company Profile

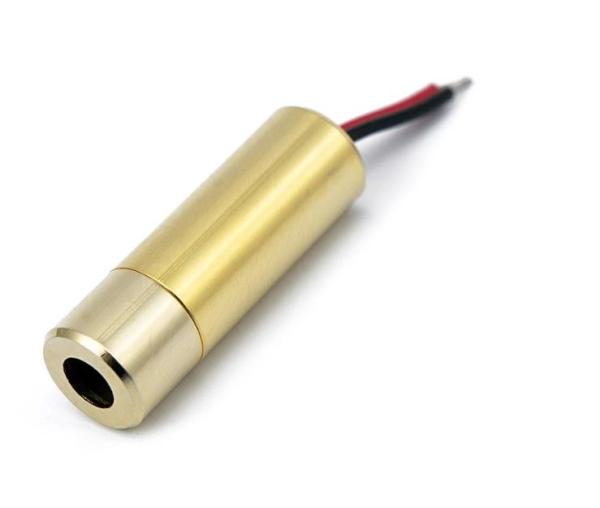

Industry 120 Degrees 650nm 100mw Red Laser Diode Module

650nm 100mw 120 Degrees Laser Line Module Red Marking Laser for Industry

SPECIFICATION		650nm
1	Dimensions	12x35mm
2	Operating voltage (Vop)	3-5DCV
3	Operating current (Lop)	≤300mA
4	Output power (Po)	100mW
5	Collimating lens	Aspherical plastic lens/Glass
6	Spot size at 1m	<1mm
7	Divergence (Half Angle)	0.5 mRad
8	Operating temp.rage	-36~65°C
9	Storage temp.range	-36~65°C
10	Housing	Brass
11	Mean time to failure(MTTF)	≥8000h

Application:

1 Sighting device for orientation

2 Laser test tools

3 Concertricity positioning

4 Production of signal equipment

5 Use for DIY robots

Industry 120 Degrees 650nm 100mw Red Laser Diode Module

Application area: Laser modules can be widely used in various industries. For example: stage projector, laser therapeutic apparatus, laser cosmetic apparatus, laser indicator, laser pen bar code scanner, level instrument, level instrument, level instrument, electric tool, building measurement, burglar alarm system, laser thermometer, industrial detector, processing positioning, military aiming, laser guidance, aviation industry, etc. Experimental laser source, children's toys, etc. Automation design and other industries.
